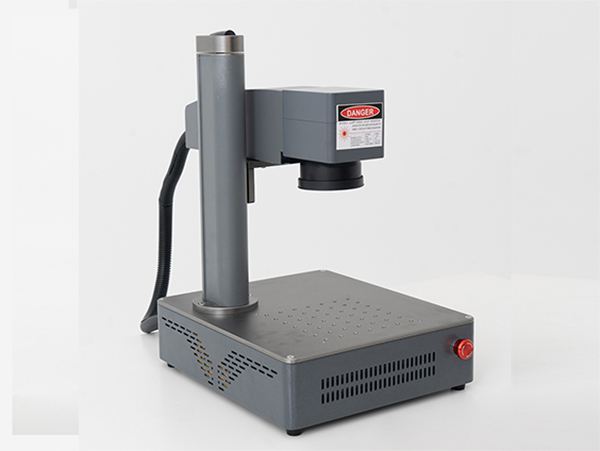

- KMF-20M Fiber Laser Marking Machine
- No.：KMF-20M
- Category：Fiber Laser Marking Machine
- Evaluation：( 0 ) record
- Hits：105

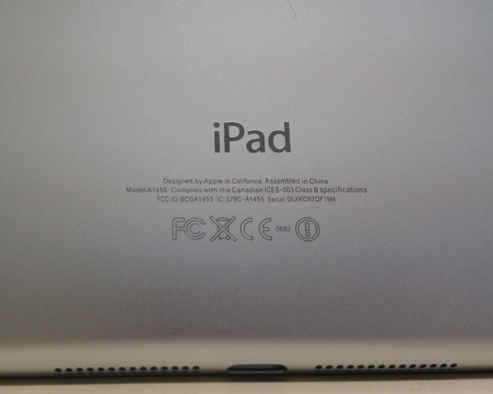

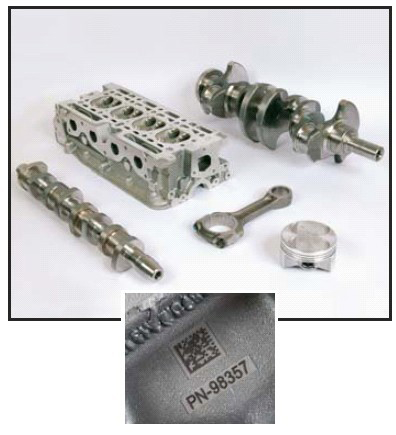

Introduction： This model is compact design,size is like a computer case,you can put it on a table and play with it. Fiber laser will help you for directly marking or engraving your metal and plastic products,such as images,graphics, letters, figures,serial No., batch No.,barcode, etc.
2- Fiber source lifetime up to 100,000 hours.
3- No complicated installation, totally maintenance-free.
4- Friendly interface, very easy operation.
5- Red preview function, help you find the marking position easily.
6- Digital galvo scanning system ensures high marking speed and accurate marking.
7- Fine laser beam quality, fine marking result.
8- Energy saving, low power consumption, about 500W only.
9- USB communication interface, its compatible with both PC or laptop.
10- Non-contact working way, wont deform your products.
11- No need other consumable or assist materials, laser directly mark on your products.
|
Item Name |
Laser Marking Machine |
|
Model |
KMF-20M |
|
Laser Wavelength |
1064nm |
|
Laser Source |
Pulsed Fiber Laser |
|
Laser Wattage |
20W/30W |
|
Beam quality |
m2<2 |
|
Laser repetition rate |
20 KHz-100 KHz |
|
Marking speed |
≤ 8000 mm / s |
|
Working area |
110×110 mm |
|
Min.character size |
0.15 mm |
|
Min line width |
0.01mm |
|
Mark depth |
≤1 mm |
|
Positioning accuracy |
± 0.002 mm |
|
Power consumption |
≤500 W |
|
Power supply |
AC220V ± 5% , 50/60Hz |
|
Environment requirements |
5-35℃, humidity 30%-80% |
|
Cooling style |
Air cooling |
|
Support System |
Win 7/10 |
|
Supportable formats |
PLT, AI, DXF, BMP, JPG,etc. |
|
Machine dimension |
380×330×520 mm |
|
Packing dimension |
540×430×290 mm |
|
Weight |
N.W. : 15kg G.W.：20kg |
