- KMF-20M Fiber Laser Marking Machine
- No.：KMF-20M
- Category：Drilling Machine/Marking Machine
- Evaluation：( 0 ) record
- Hits：3079

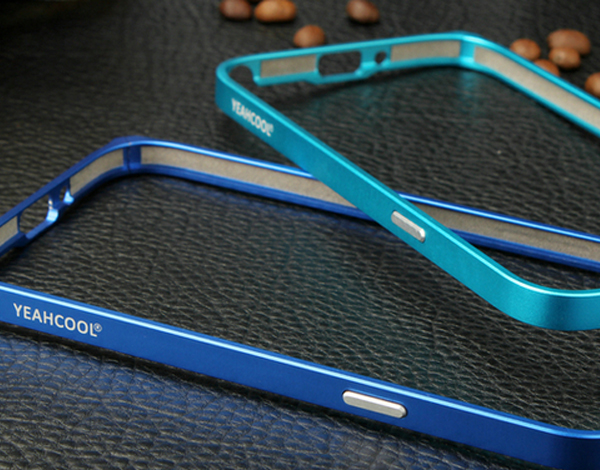

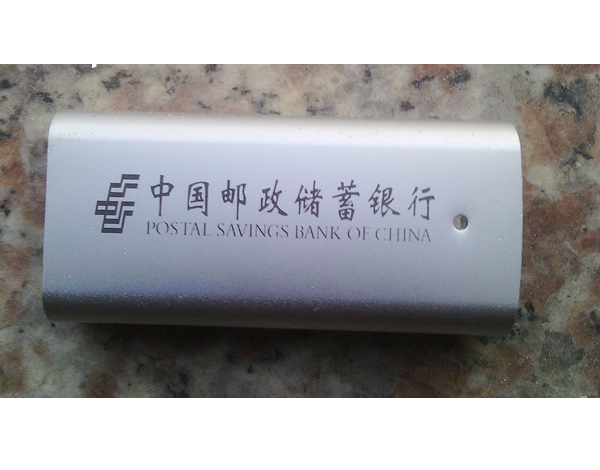

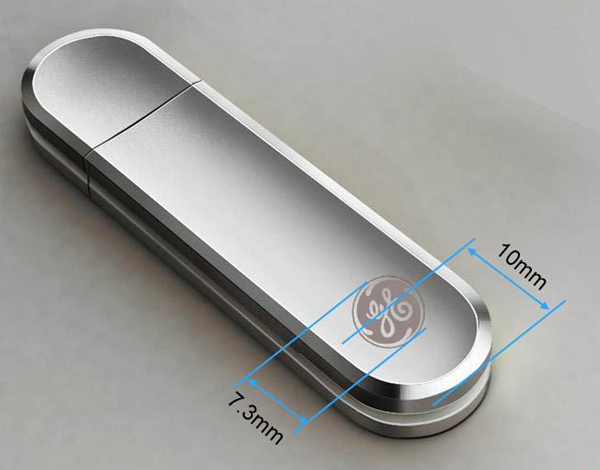

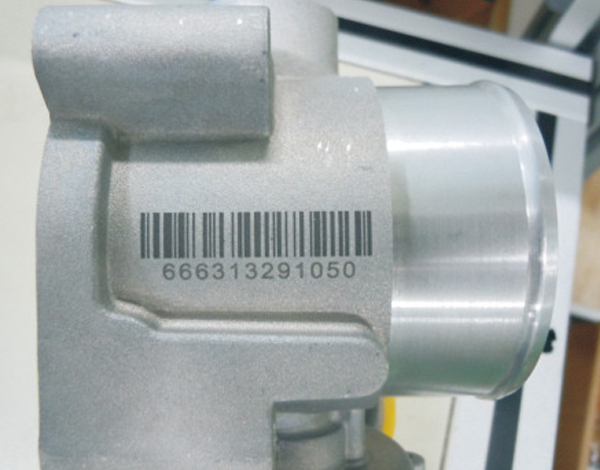

Introduction： KMF-20M is specially developed for different color markings on stainless steel, back mark on anodized aluminum products (iPhone case.), plastic and some sensitive materials.
2- No complicated installation, totally maintenance-free.
3- Friendly interface, very easy operation.
4- Red preview function, help you find the marking position easily.
5- Digital galvo scanning system ensures high marking speed and accurate marking.
6- Fine laser beam quality, fine marking result.
7- Compact design and air cooling, require less working space.
8- Energy saving, low power consumption, about 500W only.
9- With industrial PC, users dont need to find a PC to operate it.
10- Non-contact working way, wont deform your products.
11- No need other consumable or assist materials, laser directly mark on your products.
|
Model |
KMF-20M |
|
Laser Source |
Pulsed Fiber Laser |
|
Laser Wattage |
20 or 30W |
|
Beam quality |
m2<2 |
|
Laser repetition rate |
20 KHz-100 KHz depends on the laser power |
|
Marking speed |
8000 mm / s |
|
Working area |
110×110 mm(standard) 70x70 mm,175x175 mm (optional) |
|
Min.character size |
0.15 mm |
|
Min line width |
0.01 mm |
|
Positioning accuracy |
± 0.002 mm |
|
Power consumption |
500 W |
|
Power supply |
AC220V ± 5% , 50/60Hz, Single phase |
|
Environment requirements |
5-35, humidity 30%-80% |
|
Cooling style |
Air cooling |
|
O/S |
Windows XP, Win 7, |
|
Supportable formats |
PLT, AI, DXF, BMP, JPG,etc. |
|
Dimension(L x W x H) |
90×85×130 cm |
|
Weight |
120kg |
Optional functions or accessories:
◆ Focus finder, it help you find the laser focal point easier.
◆ Rotation device, its great for marking cylindrical items.
◆ Protective cover
◆ Protective goggles, it protects the operator eyes.
