  • KMF-20P Portale Fiber Laser Marking Machine
  • No.:KMF-20P
  • Category:Drilling Machine/Marking Machine
  • Evaluation:( 0 ) record
  • Hits:3001
我要订购
share: Google+ Facebook Virb Twitter LinkedIn Yookos

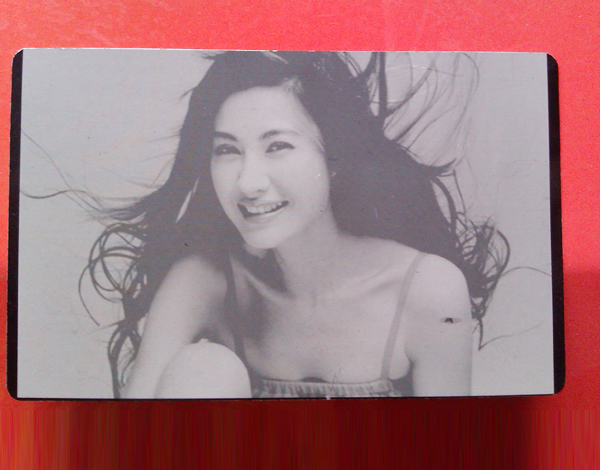

Introduction: This model is compact design,size is like a computer case,you can put it on a table and play with it. Fiber laser will help you for directly marking or engraving your metal and plastic products,such as images,graphics, letters, figures,serial No., batch No.,barcode, etc.

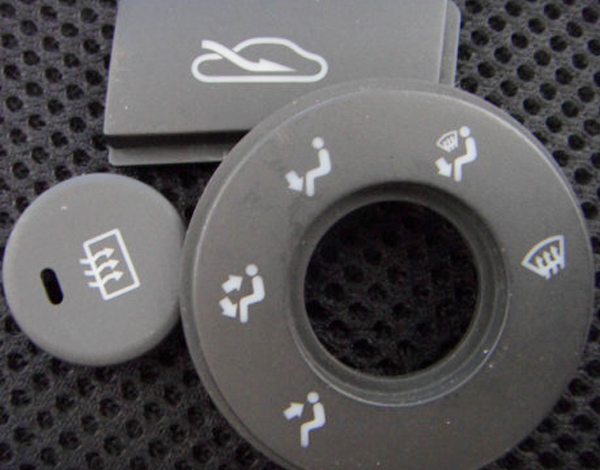

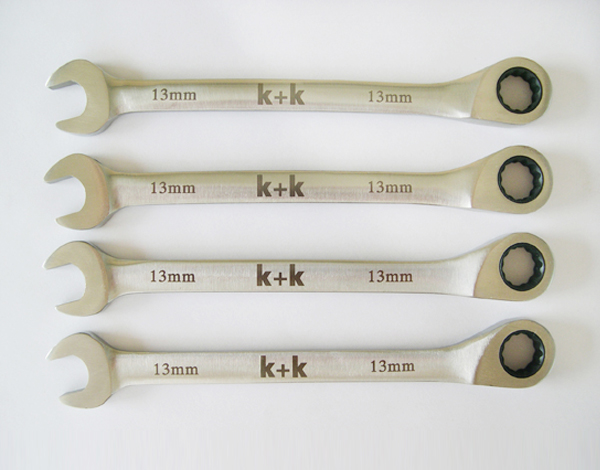

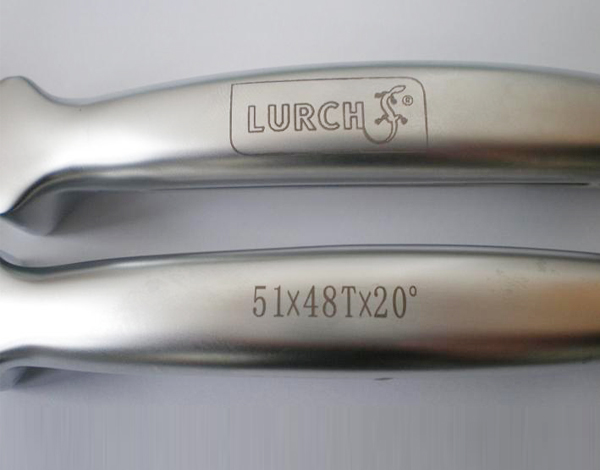

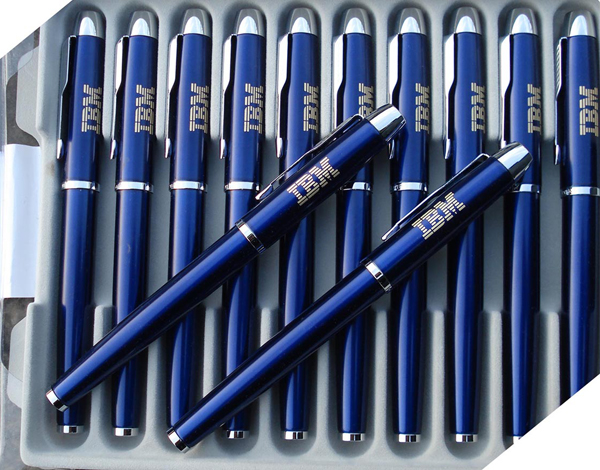

Hardware tools, auto parts and spare parts, accessories, electronics, jewelry,decoration,electrical instruments, watches,stationery,promotional gifts, bathroom products,etc.
 1- Compact design,size is like a computer case, portable type.
 2- Fiber source lifetime up to 100,000 hours.
 3- No complicated installation, totally maintenance-free.
 4- Friendly interface, very easy operation.
 5- Red preview function, help you find the marking position easily.
 6- Digital galvo scanning system ensures high marking speed and accurate marking.
 7- Fine laser beam quality, fine marking result.
 8- Energy saving, low power consumption, about 500W only.
 9- USB communication interface, its compatible with both PC or laptop.
 10- Non-contact working way, wont deform your products.
 11- No need other consumable or assist materials, laser directly mark on your products.
All kinds of metal(including precious metals),stainless steel,steel, aluminum,brass,copper,gold, high hardness alloys,coated materials,PVC,rubber,epoxy resin,etc.

Model

KMF-20P

Laser Source

Pulsed Fiber Laser

Laser Wattage

10, 20, 30 or 50W

Beam quality

m2<2

Laser repetition rate

20 KHz-100 KHz depends on the laser power

Marking speed

8000 mm / s

Working area

110×110 mm(standard)
70x70 mm,175x175 mm (optional)

Min.character size

0.15 mm

Min line width

0.01 mm

Positioning accuracy

± 0.002 mm

Power consumption

500 W

Power supply

AC220V ± 5% , 50/60Hz, Single phase

Cooling style

Air cooling

Environment requirements

5-35,  humidity 30%-80%

O/S,

Windows XP, Win 7,

Supportable formats

PLT, AI, DXF, BMP, JPG,etc.

Dimension(L x W x H)

660X260X510 mm

Weight

30 kg


Optional functions or accessories:
◆ Focus finder, it help you find the laser focal point easier.
◆ Rotation device, its great for marking cylindrical items.
◆ Protective cover
◆ Protective goggles, it protects the operator eyes.
