- KMF-20S Fiber Laser Marking Machine
- No.：KMF-20S
- Category：Fiber Laser Marking Machine
- Evaluation：( 0 ) record
- Hits：163

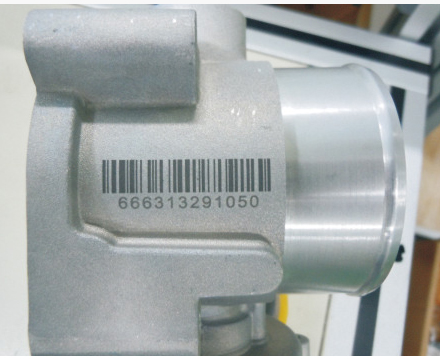

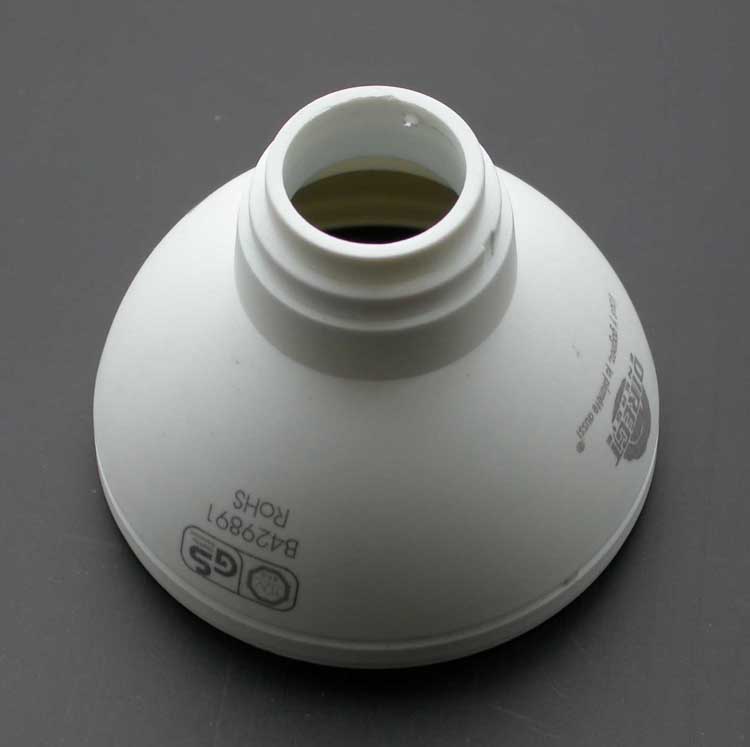

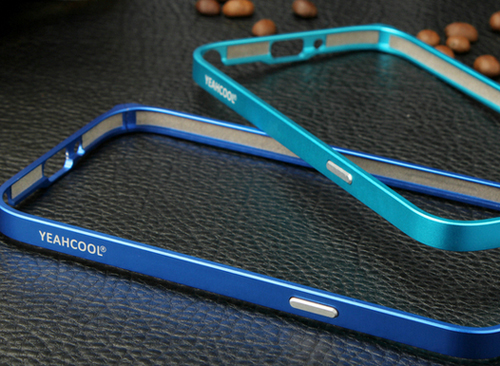

Introduction： This unique Fiber laser marking machine is used to directly mark and engrave on your metal and plastic products, such as text, letter, figures, graphics, images,serial No., batch No.,barcodes,QR code, etc.
2- Fiber source lifetime up to 100,000 hours.
3- No complicated installation, totally maintenance-free.
4- Friendly interface, very easy operation.
5- Red preview function, help you find the marking position easily.
6- Digital galvo scanning system ensures high marking speed and accurate marking.
7- Fine laser beam quality, fine marking result.
8- Energy saving, low power consumption, about 500W only.
9- USB communication interface, its compatible with both PC or laptop.
10- Non-contact working way, wont deform your products.
11- No need other consumable or assist materials, laser directly mark on your products.
|
Model |
KMF-20S |
|
Laser Wavelength |
1064nm |
|
Laser Source |
Pulsed Fiber Laser |
|
Laser Wattage |
20W/30W/50W/100W |
|
Beam quality |
m2<2 |
|
Laser repetition rate |
20 KHz-100 KHz |
|
Marking speed |
≤ 8000 mm / s |
|
Working area |
110×110 mm(standard) 70x70 mm,175x175 mm (optional) |
|
Min.character size |
0.15 mm |
|
Min line width |
0.01 mm |
|
Mark depth |
≤1 mm |
|
Positioning accuracy |
± 0.002 mm |
|
Power consumption |
≤500 W |
|
Power supply |
AC220V ± 5% , 50/60Hz |
|
Environment requirements |
5-35℃, humidity 30%-80% |
|
Cooling style |
Air cooling |
|
Support System |
Win 7/10 |
|
Supportable formats |
PLT, AI, DXF, BMP, JPG,etc. |
|
Packing dimension |
83×41×81 cm |
