Location:Home > Product center > CO2 Laser Cutting Machine > CO2 Laser Cutting&Engraving Machine
  • CO2 Laser Cutting&Engraving Machine
  • No.:KC-9060
  • Category:CO2 Laser Cutting Machine
  • Evaluation:( 0 ) record
  • Hits:4320
我要订购
share: Google+ Facebook Virb Twitter LinkedIn Yookos

Introduction: KC-9060 is one of popular model of CO2 laser Engraving Cutting systems, smooth engraving effect, smooth cutting edge, low investment, it's a Good choice for starting your laser business or adding an extra laser system to your line.

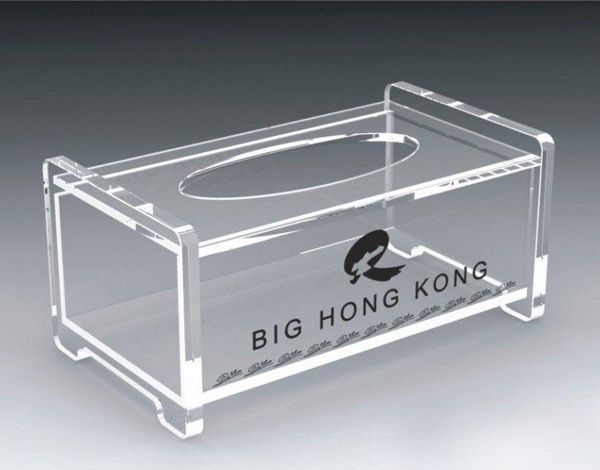

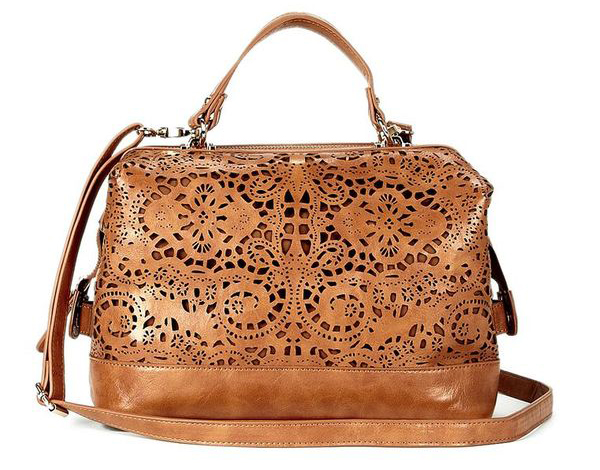

Advertisement, clothing,leather shoes,bag,lable, jeans, promotional gifts,greeting card, wood&bamboo crafts,and more.
 1- Strong mechanical structure,durable and steady.
 2- High quality guide rail and high-speed stepper motor ensure the stable, smooth cutting or engraving.
 3- Dustproof design,greatly improves the system’s reliability and durability.
 4- High quality mirror and focus lens,less laser lost in transmission and have better cutting ability than usual.
 5- Water-cooling system with self-protection assures 24-hour working.
 6- Make settings in professional software, select engrave function, it's able to cut and engrave in one time.

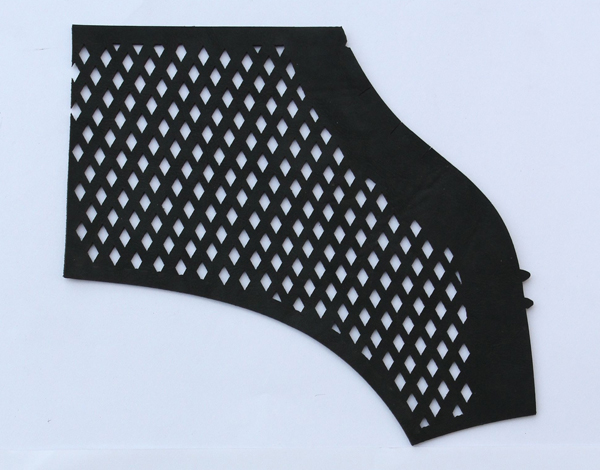

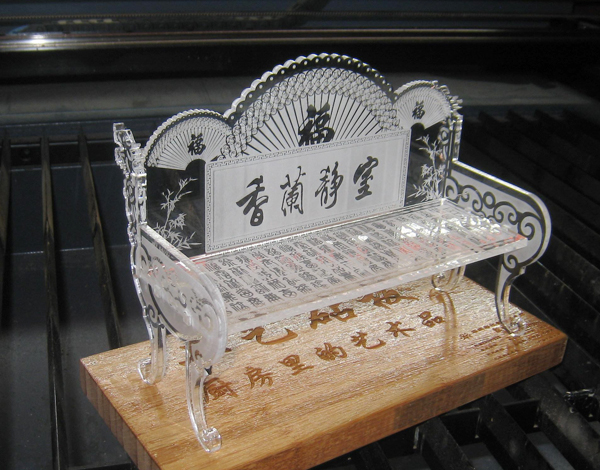

All kinds of non-metal materials,leather, acrylic, wood, bamboo, pressboard, rubber,stone, plastics, jean, paper,cloth,fabric, etc.

Model

KC-6040

KC-9060

KC-1490

KC-1610

Laser Source

 CO2 Laser

CO2 Laser

CO2 Laser

 CO2 Laser

Laser wavelength

10640 nm

10640 nm

10640 nm

10640 nm

Laser Wattage

60W/ 80W

60W/80W/100W

80W/100W/ 130W

80W/100W/ 130W

Working area:

600 x 400 mm

900 x 600 mm

1400 x 900 mm

1600 x 1000 mm

Max. cutting speed

0-24m/m

0-24m/m

0-24m/m

0-24m/m

Max. engraving speed

0-48m/m

0-48m/m

0-48m/m

0-48m/m

Max. cutting thickness

≤25mm Acrylic

≤25mm Acrylic

≤25mm Acrylic

≤25mm Acrylic

Repeated precision

±0.01mm

±0.01mm

±0.01mm

±0.01mm

Cooling style

Water cooling

Water cooling

Water cooling

Water cooling

Power consumption

≤ 1 kw

≤ 1 kw

≤ 1.2 kw

≤ 1.2 kw

Electrical Requirements

AC220V, 50/60Hz

AC220V, 50/60Hz

AC220V, 50/60Hz

AC220V, 50/60Hz

Dimension(L x W x H)

158 x 90 x 112cm

158 x 118 x 112cm

200 x 149 x 112cm

220 x 159 x 112cm

Weight

180 kg

220 kg

280 kg

300 kg
