- UV Laser Marking Machine
- No.：KMV-3
- Category：UV Laser Marking Machine
- Evaluation：( 0 ) record
- Hits：2446
Introduction： KMV Series UV laser marking machine, the focus spot is extremely small, there is almost no heating effect on working area.Therefor, it’s able to mark some special materials, it’s the best choice for higher standard laser marking.

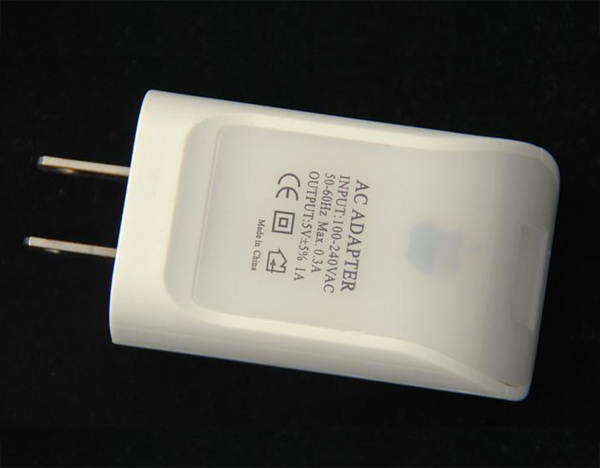

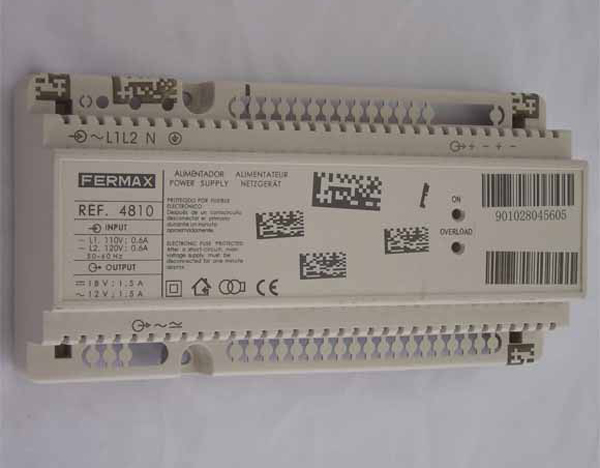

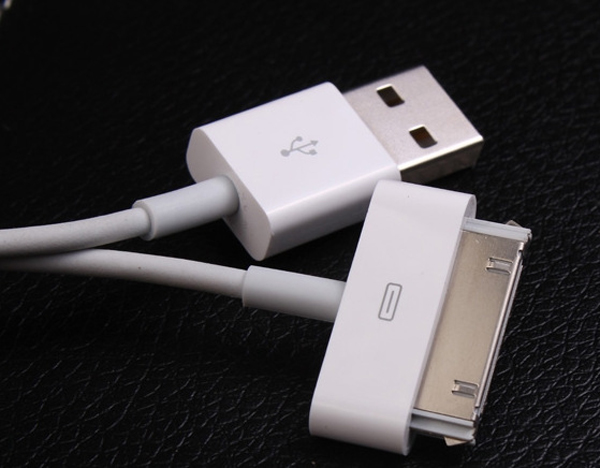

High polymer packing bottles for food, cosmetic,medicine,consuming electronics ,mobile phone accessories,and etc.
◆ Adopts imported UV laser source, stable performance, compact size,with long lifetime.
◆ UV laser only with very a little heating, perfect laser beam quality create super marking effect.
◆ Energy saving, low power consumption,no consumable materials required.
◆ Compact design and air cooling, require less working space.
◆ The software support formats such as PLT, AI, DXF, BMP, JPG,etc.

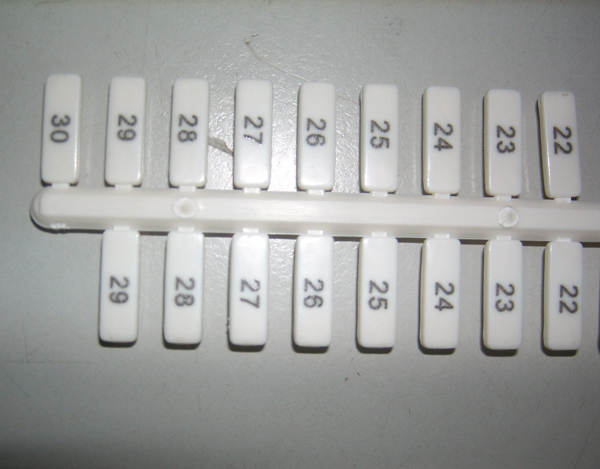

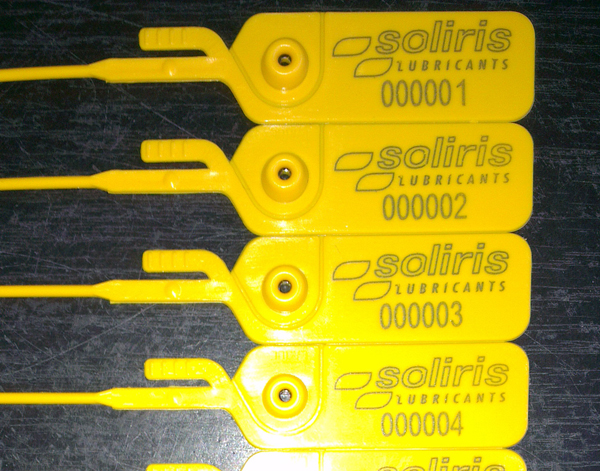

All kinds of non-metal materials,plastic,ceramic,glass，high polymer material and so on.
|
Model |
KMV-3 |
KMV-5 |
|
Laser wavelength |
355 nm |
355 nm |
|
Beam quality |
m2<2 |
m2<2 |
|
Laser Wattage |
3W |
5W |
|
Q Adjustment Frequency |
8KHz-15KHz |
8KHz-15KHz |
|
Galvo marking speed |
≤ 7000 mm / s |
≤ 7000 mm / s |
|
Working area |
110×110 mm |
110×110 mm |
|
Min.character size |
0.2 mm |
0.2 mm |
|
Min line width |
0.01 mm |
0.01 mm |
|
Repeating position accurancy |
± 0.003 mm |
± 0.003 mm |
|
Cooling style |
Water cooling |
Water cooling |
|
Power consumption |
≤2 kw |
≤2 kw |
|
Electrical Requirements |
AC220V ± 5% , 50/60Hz |
AC220V ± 5% , 50/60Hz |
|
Environment requirements |
5-35℃,humidity 30%-80% |
5-35℃, humidity 30%-80% |
|
Dimension(L x W x H) |
650x720x1450mm |
650x720x1450mm |
|
Weight |
150kg |
150kg |
