Location:Home > Product center > > Jewelry Laser Welding Machine
  • Jewelry Laser Welding Machine
  • No.:KW-150
  • Category:
  • Evaluation:( 0 ) record
  • Hits:1526
我要订购
share: Google+ Facebook Virb Twitter LinkedIn Yookos

Introduction: It's specially designed for welding the jewelry .

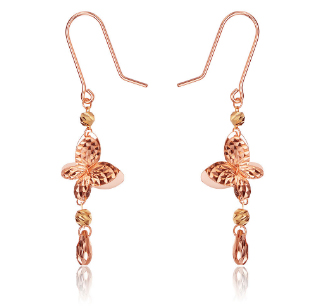

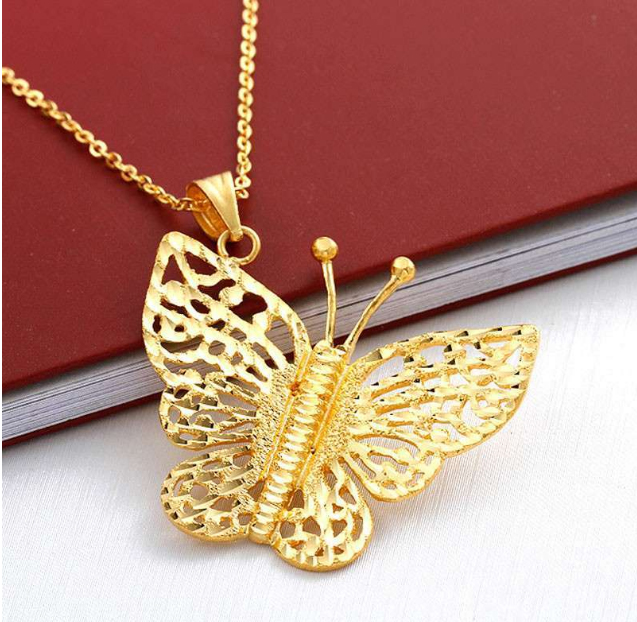

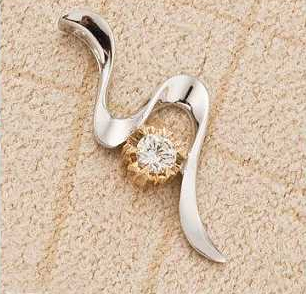

Ring ,earrings,bracelet,necklace,breastpin,cuff-link and other jewellery, metal gifts,precision parts,micro-motor and other industry.

1- Based on design view of human engineering, makes the structure more beautiful, stable and more suitable for continuous and long time working for jewellery industry .

2-  Equiped with special cushion for head and arm, which are more comfortable for long time working.

3-  Big working house which is better for setting fixture, tools.

4-  Equiped switches inside of working house for adjusting laser dot size and laser parameters expediently.

5-  Easy dismountable air filter.

6-  Edge-corners of working house are smooth, which is better for clean and collecting the scraps.

7-  With high bright annular LED shadowless lamp, making welding point more clear under view.

8-  Fine laser dot makes the specific welding requirement getting easy.

Gold,silver,platinum,titanium,stainless steel and other metals

Model

KW-150

KW-300

Laser wavelength

1064nm

1064nm

Laser-gathering cavity

UK ceremic cavity

Max. laser power

150W

300W

Pulse length

0.1-20ms

Laser frequency

0.1-50HZ

0.1-200HZ

Size scope for laser dot

0.3-2mm

Aiming device

Cross cursor and red dot preview,

carema system(optional part)

Power of chiller

1.5P

3P Split-type

Average power consumption

6kW (single/3 phase)

12kW 3 phase

Input power

Single phase 220V±5%/50HZ/30A

3 Phase 380V±5%/50HZ/30A



3 phase 380V±5%/50HZ/20A

Dimension

500*950*1100MM

600*1100*1100MM
