- KMX-280 3-Axis Dynamic Focus CO2 Laser Galvo System
- No.：KMX-280
- Category：3-Axis CO2 Laser Galvo System
- Evaluation：( 0 ) record
- Hits：2748

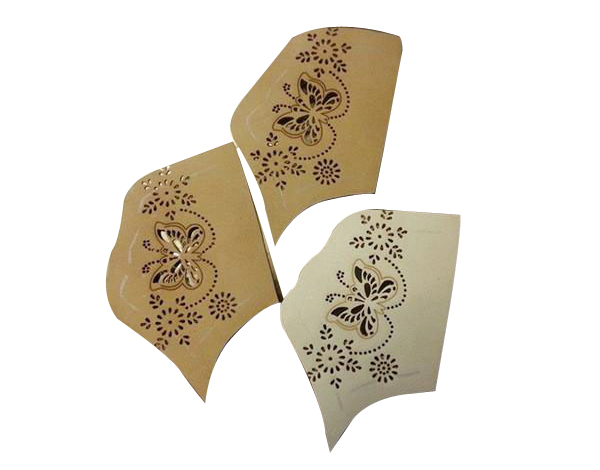

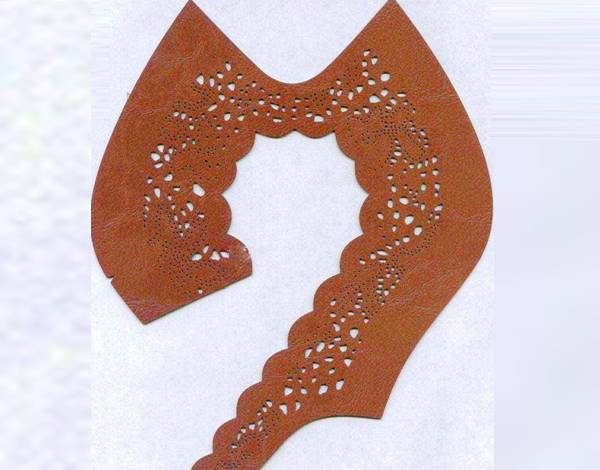

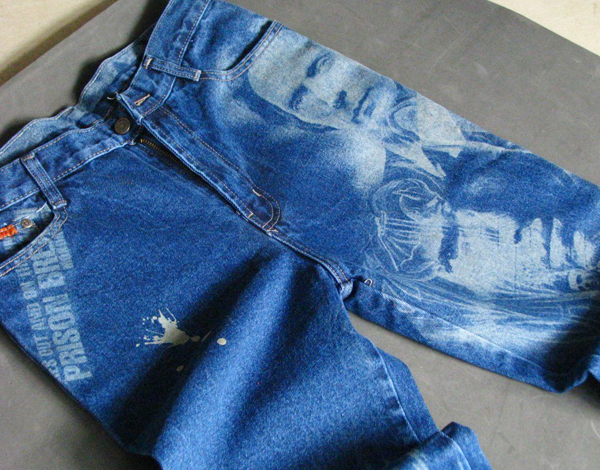

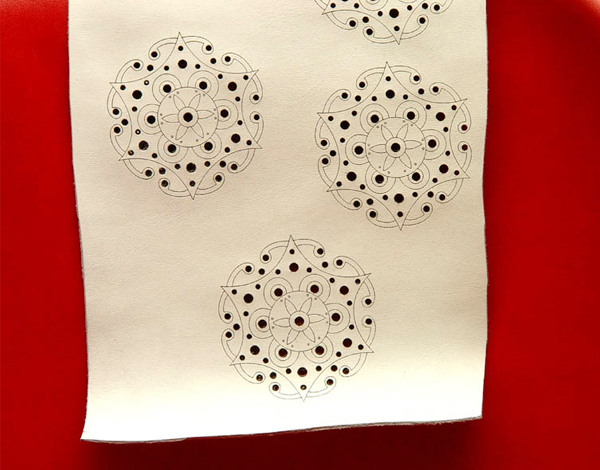

Introduction： KMX-280 is very suitable for large working area, high efficiency marking & engraving of non-metal materials, such as leather,jean,wood, stone, plastics, or fast cutting of thin materials, such as paper, cloth,fabric, leather and much more. Utilize perfect smoke exhausting system, solve the smoke and dust during laser working on leather,jeans and etc. Ensure the better laser processing result and protect the users from smoke.
With 3-axis dynamic focusing system, engraving speed is about 20% enhanced.
Max.engraving area is 600x600mm, engraving quality is perfect .
Friendly interface, very easy operation.
High speed galvo scanning system ensures high speed and accurancy.
Non-contact working way, wont deform the your products.
No need other consumable or assist materials, laser directly mark on your products.
|
|
KMX-280 |
|
Laser Source |
Metal sealed-off RF CO2 laser |
|
Laser wavelength |
10640 nm |
|
Laser Wattage |
280 W |
|
Galvo marking speed |
7000 mm / s |
|
Z axis responding time |
4ms |
|
Working area |
400X400mm~800x800mm (adjustable ) |
|
Min.character size |
0.5 mm |
|
Repeating position accurancy |
± 0.02 mm |
|
Cooling style |
Water cooling |
|
Power consumption |
4 kw |
|
Electrical Requirements |
AC220V ± 5% , 50/60Hz, 35A, Single phase |
|
Environment requirements |
5-35, humidity 30%-80% , no condensation |
|
O/S |
Windows XP, Win 7 |
|
Supportable formats |
PLT, AI, DXF, BMP, JPG,etc. |
|
Dimension(L x W x H) |
Marking system : 1350×1100×1700 mm Cooling system : 890×590×980 mm |
|
Weight |
280 kg |
Optional functions or accessories:
Red preview function
Protective cover
Protective goggles,it protects the operators eyes.
