- KMC-60 CO2 Laser Marking Machine
- No.：KMC-60
- Category：CO2 Laser Marking Machine
- Evaluation：( 0 ) record
- Hits：2853

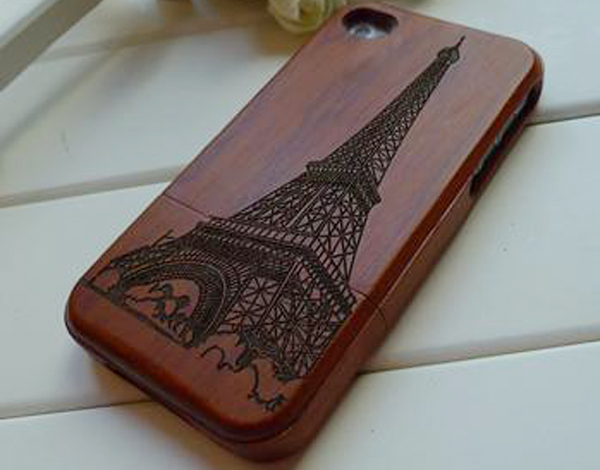

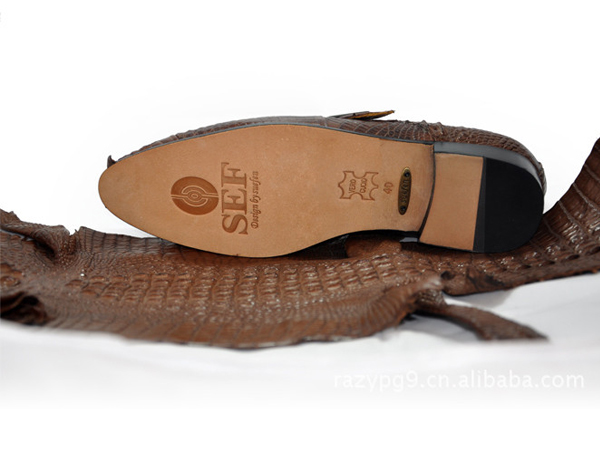

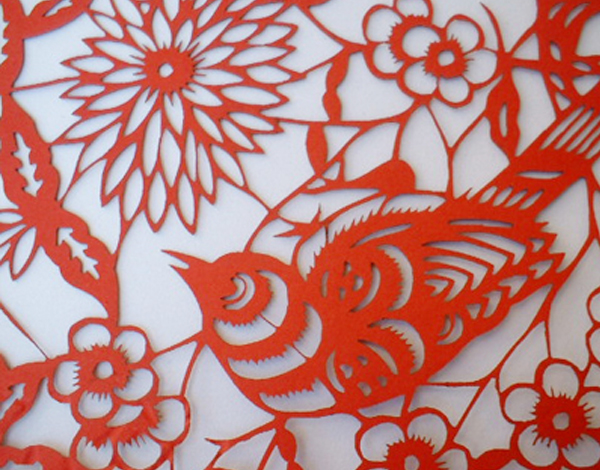

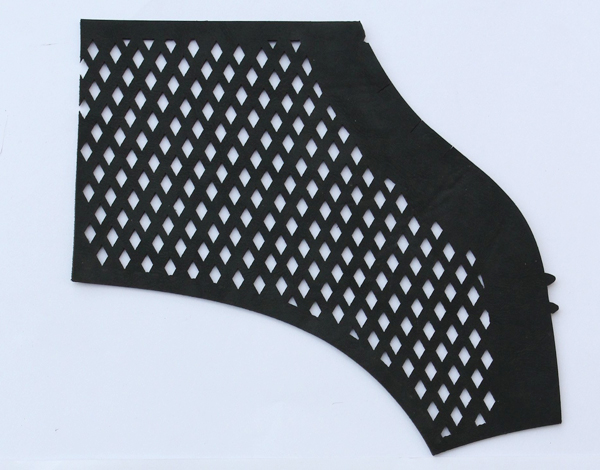

Introduction： KMC-60 is utilized by customers for highest speed marking or etching of non-metal materials, such as leather,jean,buttons, wood, stone, plastics, or fast cutting of thin materials, such as paper, cloth,fabric, leather and much more.
2-No complicated installation, totally maintenance-free.
3- Friendly interface, very easy operation.
4- High speed galvo scanning system ensures high speed and accurancy.
5- Its applicable to different production line for auto-marking.
6- Non-contact working way, wont deform the your products.
7- No need other consumable or assist materials, laser directly mark on your products.
|
Model |
KMC-60 |
|
Laser Source |
Metal sealed-off RF CO2 laser |
|
Laser wavelength |
10640 nm |
|
Laser Wattage |
60 W |
|
Galvo marking speed |
7000 mm / s |
|
Working area |
175x175 mm(standard) 300x300 mm (optional) |
|
Min.character size |
0.5 mm |
|
Repeating position accurancy |
± 0.03 mm |
|
Cooling style |
Air cooling |
|
Power consumption |
1.5 kw |
|
Electrical Requirements |
AC220V ± 5% , 50/60Hz, Single phase |
|
Environment requirements |
5-35, humidity 30%-80% , no condensation |
|
O/S |
Windows XP, Win 7 |
|
Supportable formats |
PLT, AI, DXF, BMP, JPG,etc. |
|
Dimension(L x W x H) |
Optic system : 130×350×140mm Control system : 560×650×830mm |
|
Weight |
200 kg |
Optional functions or accessories:
Rotation device,its great for marking cylindrical items.
Protective cover
Protective goggles,it protects the operators eyes.
