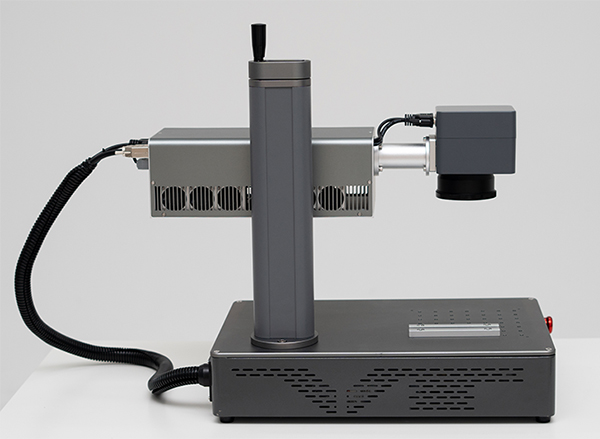

- KMV-3M UV Laser Marking Machine
- No.：KMV-3M
- Category：UV Laser Marking Machine
- Evaluation：( 0 ) record
- Hits：123
Introduction： This unique UV laser marking machine is used to directly mark and engrave on your plastic and metal products, such as text, letter, figures, graphics, images,serial No., batch No.,barcodes,QR code, etc. UV laser line is extremely thin,and has less heating effect. So, it’s suitable be used to mark on non-metal materials .

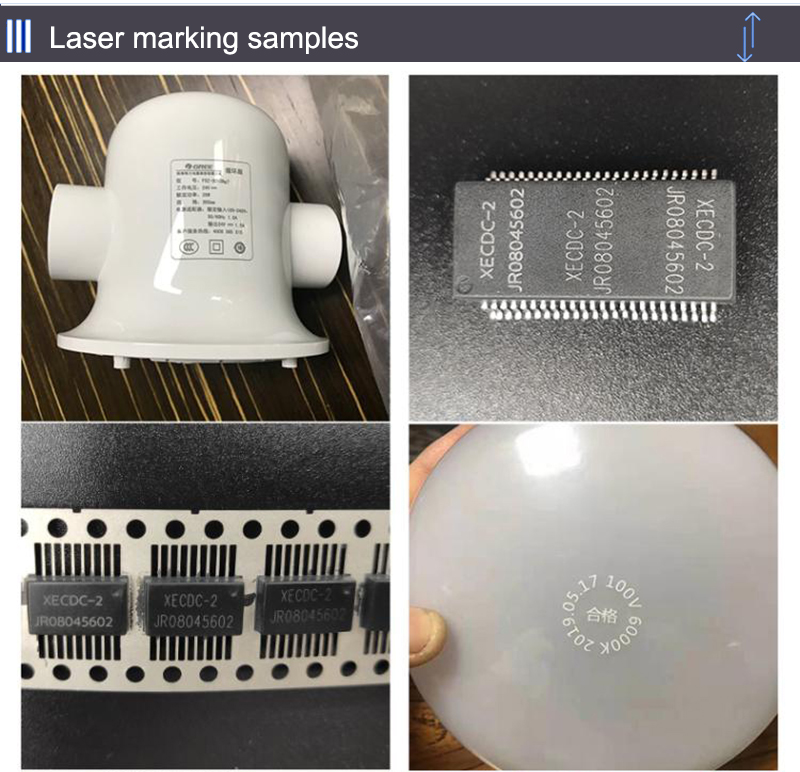

All kinds of non-metal materials,plastic,ceramic,glass,high polymer material and so on.
1. Adopts high quality UV laser source, stable performance, compact size,with long lifetime.
2. UV laser only with very a little heating area, perfect laser beam quality creates super marking effect.
3. Energy saving, low power consumption,no consumable materials required.
4. Compact design,air cooling or water cooling type, requires less working space.
5. The software support formats such as PLT, AI, DXF, BMP, JPG,etc.
All kinds of non-metal materials,plastic,ceramic,glass,high polymer material and so on.
|
Model |
KMV-3M |
|
Laser wavelength |
355 nm |
|
Beam quality |
m2<2 |
|
Laser Wattage |
3W/ 5W |
|
Pulse Repetition Rate |
20KHz-200KHz |
|
Galvo marking speed |
≤ 7000 mm / s |
|
Working area |
150×150 mm or others |
|
Min.character size |
0.2 mm |
|
Min line width |
0.01 mm |
|
Repeating position accurancy |
± 0.003 mm |
|
Cooling style |
Water cooling or air colling |
|
Power consumption |
≤1.2 kw |
|
Electrical Requirements |
AC220V ± 5% , 50/60Hz |
|
Environment requirements |
5-35℃,humidity 30%-80% |
|
Support System |
Win 7/10 |
|
Supportable formats |
PLT, AI, DXF, BMP, JPG,etc. |
|
Machine dimension |
500×330×520 mm |
|
Packing dimension |
720×460×380 mm |
|
Weight |
N.W. : 20 kg G.W.：22 kg |
