- Multifunctional Laser Welding Machine
- No.：KWJ-200A
- Category：YAG Laser Welding Machine
- Evaluation：( 0 ) record
- Hits：2509
Introduction： It is widely used in welding mobilephone case,electronic products.It’s able to weld two different kinds of metal with high metling point, not requires other welding media, and non-contacted welding, the welding spot is solid with a little heating effecting area and without deformation.

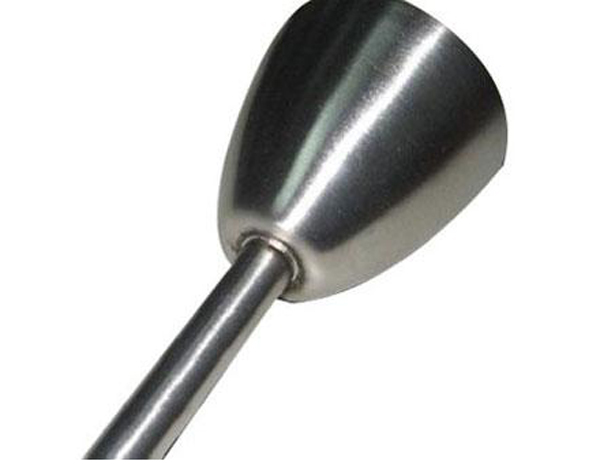

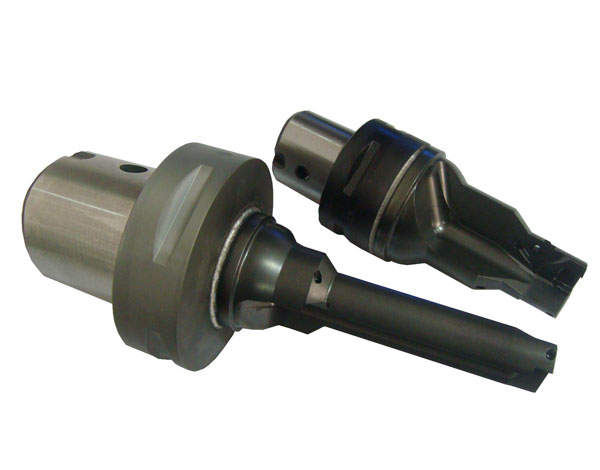

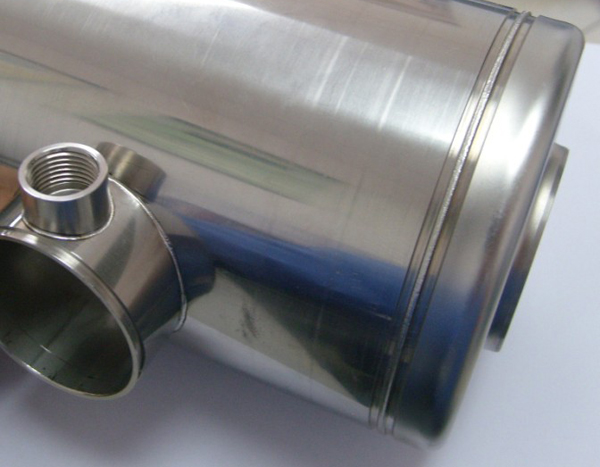

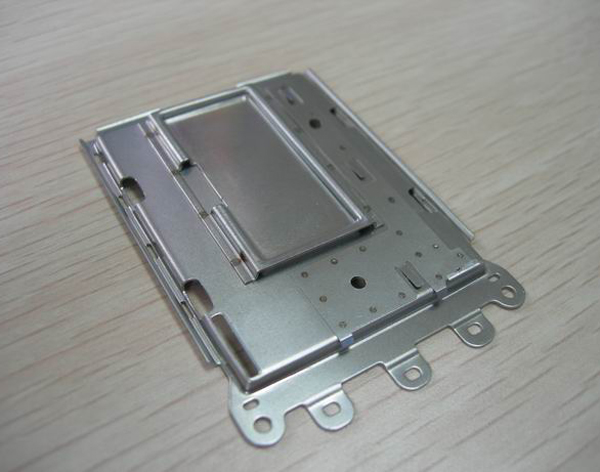

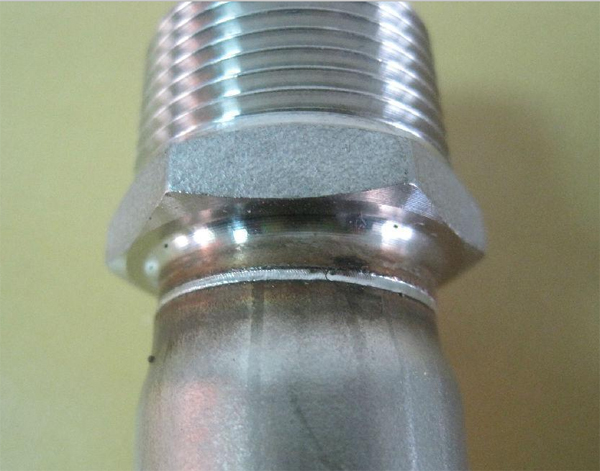

Mobile communications,electronics,glasses,clocks, watches,jewelry accessories,metal products,medical equipments,auto parts,gifts and so on.
1, Equipped with self-developed welding system.
2, Simple operation, beautiful weld seam,high welding speed and no consumables.
3, The heat affected area is small,and will not cause the mould deformation .
4, Deep welding, it’s firm and beautiful.
5, Compact design,save the occupied space and is easy to move.
6, Flexible welding arm,it’s adjustable forwardly or backwardly, turnable to left or right. Applicable to different types mould.
7, With industrial water chiller,constant temperature controlling system,protect the whole welding machine .
8, High reliability and can be continuously and stably processed 24 hours work.
|
Model No. |
KWJ-200A |
|
Wavelength |
1064nm |
|
Pulse width |
0.1-10ms |
|
Frequency |
1-20Hz |
|
Max. output power |
200W/ 400W |
|
Spot size |
0.2-2mm |
|
Control type |
Touch screen |
|
Cooling type |
Water Cooling, separately |
|
Input power |
AC220V ± 5% , 50/60Hz |
|
Power consumption |
≤6KW |
|
Wavelength |
1064nm |
|
Pulse width |
0.1-10ms |
|
Observing System |
CCD Camera and Microscope |
|
Packing dimension |
140×70×135 cm 70×68×57 cm |
|
Weight |
N.W: 250kg G.W: 300kg |
