Location:Home > Product center > Fiber Laser Marking Machine > KMF-20C Fiber Laser Marking Machine
  • KMF-20C Fiber Laser Marking Machine
  • No.:KMF-20C
  • Category:Fiber Laser Marking Machine
  • Evaluation:( 0 ) record
  • Hits:62
我要订购
share: Google+ Facebook Virb Twitter LinkedIn Yookos

Introduction: This unique Fiber laser marking machine is used to directly mark and engrave on your metal and plastic products, such as text, letter, figures, graphics, images,serial No., batch No.,barcodes,QR code, etc.

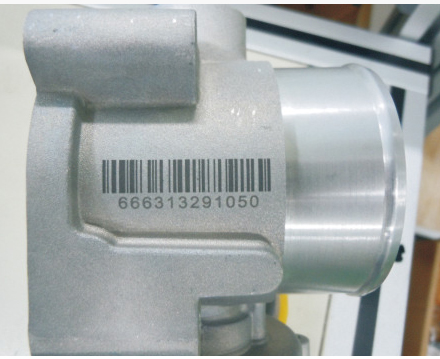

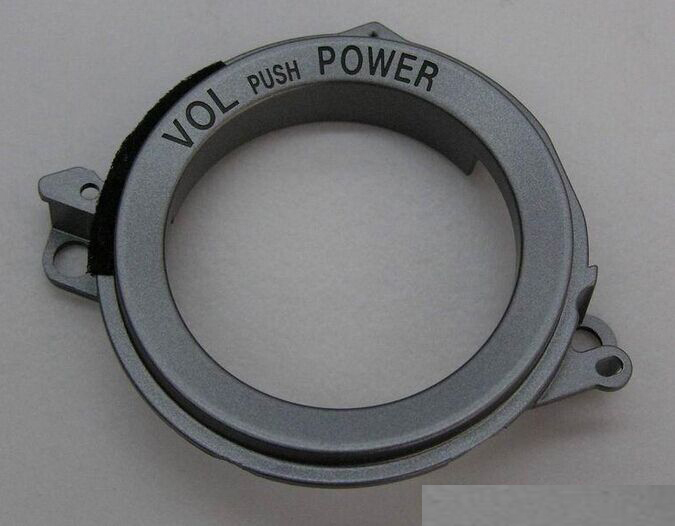

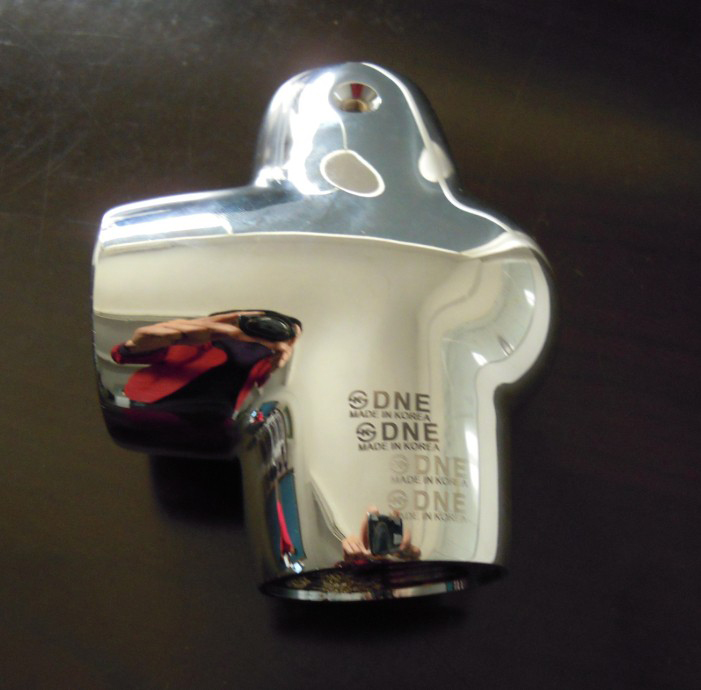

Hardware tools, auto parts and spare parts, jewelry, accessories, electronics, decoration, electrical instruments, watches,stationery,promotional gifts, bathroom products,etc.

 1- Fiber source lifetime up to 100,000 hours.
 2- No complicated installation, totally maintenance-free.
 3- Friendly interface, very easy operation.
 4- Red preview function, help you find the marking position easily.
 5- Digital galvo scanning system ensures high marking speed and accurate marking.
 6- Fine laser beam quality, fine marking result.
 7- Energy saving, low power consumption, about 500W only.
 8- USB communication interface, its compatible with both PC or laptop.
 9- Non-contact working way, wont deform your products.
10- No need other consumable or assist materials, laser directly mark on your products.

All kinds of metal (includiung precious metals), stainless steel,steel, aluminum,brass,copper,gold, high hardness alloys, coated materials,PVC,rubber,epoxy resin,etc.

Model

KMF-20C

Laser Wavelength

1064nm

Laser Source

Pulsed Fiber Laser

Laser Wattage

20W/30W/50W

Beam quality

m2<2

Laser repetition rate

20 KHz-100 KHz

Marking speed

≤ 8000 mm / s

Working area

110×110 mm(standard)

70x70 mm,175x175 mm (optional)

Min.character size

0.15 mm

Min line width

0.01mm

Mark depth

≤1 mm

Positioning accuracy

± 0.002 mm

Power consumption

≤500 W

Power supply

AC220V ± 5% , 50/60Hz

Environment requirements

5-35,  humidity 30%-80%

Cooling style

Air cooling

Support System

Win 7/10

Supportable formats

PLT, AI, DXF, BMP, JPG,etc.

Packing dimension

92×50×90 cm

Weight

N.W. : 80kg   G.W.100kg
