  • Full Enclosed Fiber Laser Cutting Machine KDF-3015M
  • No.:
  • Category:Fiber Laser Cutting Machine
  • Evaluation:( 0 ) record
  • Hits:4180
我要订购
share: Google+ Facebook Virb Twitter LinkedIn Yookos

Introduction: Fiber Laser Cutting Machines provide most suitable solutions for cutting carbon steesl, stainless sheet in various thickness.

It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.


1, Power consumption is only 20-30% of co2 laser cutting machine.

2, Be able to easily cut simple or complex parts

3, Adopts imported famous brand fiber laser generator /Life time reach 100,000hrs

4, With imported servo motor and gearing system ensure the accurate cutting

5, High quality cut without other extra polishing.

6, Higher cutting speed and efficiency, speed of cutting plate over 10 meters per minute

7, Non-contact working way, won’t deform your products.

8, Be able to cut complex designs.

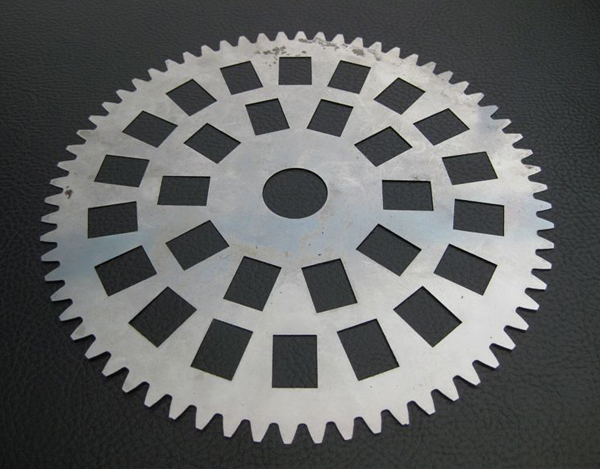

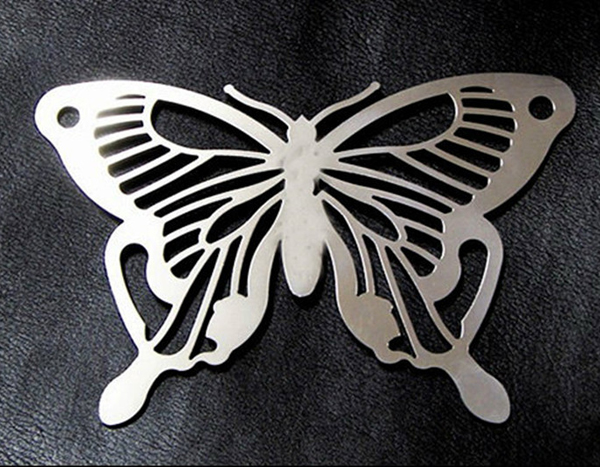

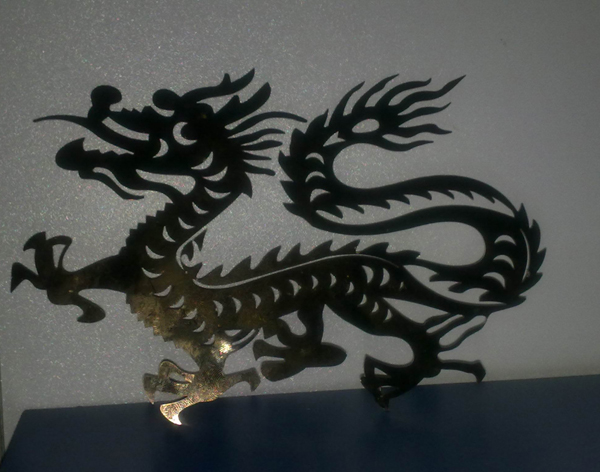

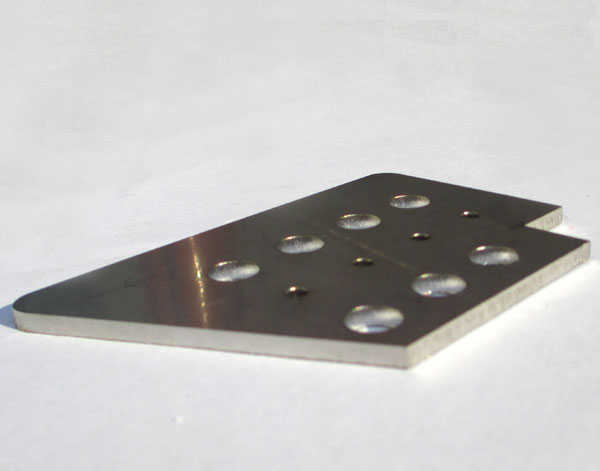

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.


Model

KDF-3015D

Laser type

Fiber Laser

Laser wavelength

1070nm

Laser output power

1000W-6000W

Cutting area(mm)(L×W)

3000mm×1500mm

Maximum speed(m/min)

120 m/min

Min line width

< 0.15mm

Maximum acceleration

1.2G

Positioning accuracy

± 0.03 mm

Minimum cutting width

0.15mm

Driving Way

Imported servo motor

Transiting Way

Dual-drive & rack and pinion system

Operational Temp Range

10 ~ 40ºC

Electrical Requirements

380V/50Hz

Cooling Style

Water cooled

Continuous working time

24 hours

Cutting speed and thickness

Depends on the material

Weight

About 7800kg

Outline size(mm)

8500mm×2950mm×1900mm  (L×W×H)
