- Handheld Laser Marking Machine
- No.：Q8
- Category：Fiber Laser Marking Machine
- Evaluation：( 0 ) record
- Hits：163

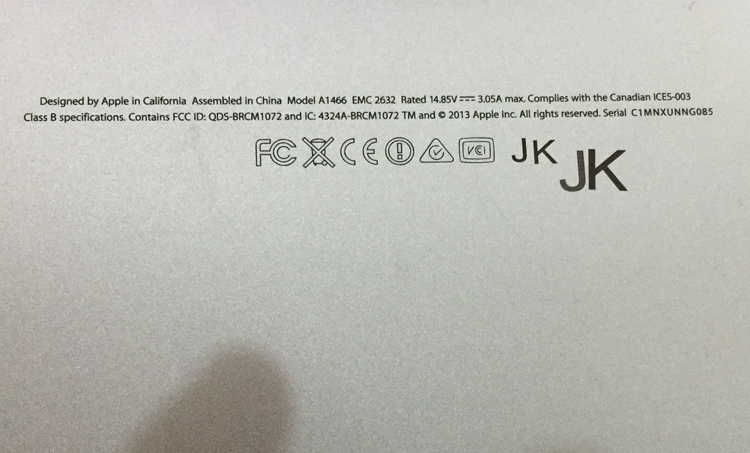

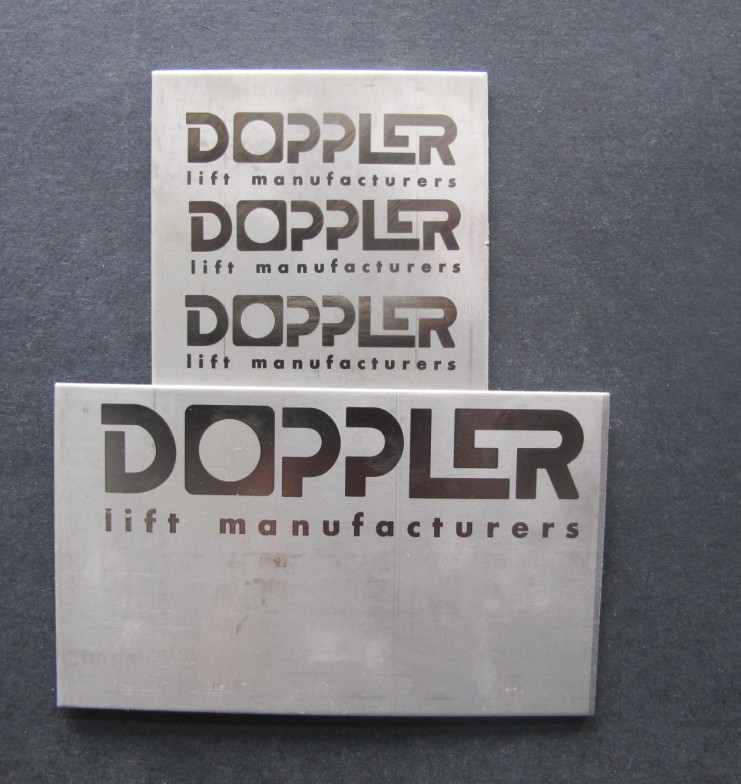

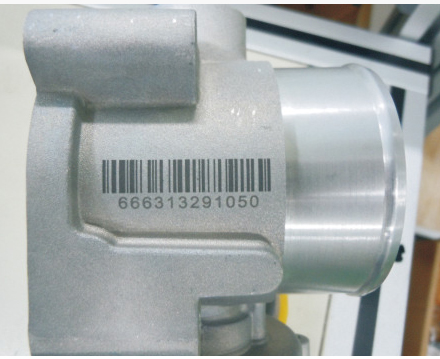

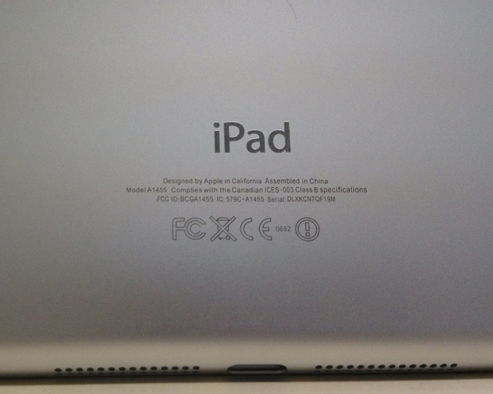

Introduction： Compare to bulky marking machines, handheld laser marking machine win with smaller volume, lightweight and flexibility. It’s easily meeting quick focusing and high-precision marking needs With 24V rechargeable lithium battery, maintain 6-8 hours work . It’s used to directly mark and engrave on your metal and plastic products, such as text, letter, figures, graphics, images,serial No., batch No.,barcodes,QR code, etc.

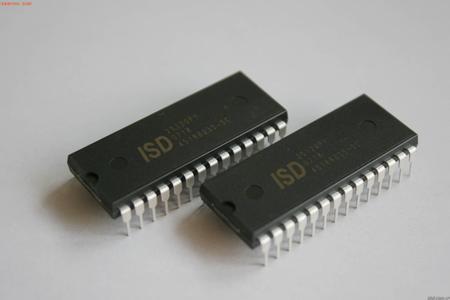

Hardware tools, auto parts and spare parts, jewelry, accessories, electronics, decoration, electrical instruments, watches,stationery,promotional gifts, bathroom products,etc.
1. Light weight,it’s about 6 kg. The handle is only 1.25 kg.
2. Easy carry,it’s suitable for marking large and heavy objects .
3. Maintenance-free, no need complicated installation .
4. With safety sensor, it will not mark without contacting the object .
5. Wireless marking, With 24V lithium battery power, maintain 6-8 hours work .
6. Even while charging, still can be used to mark, improve processing efficiency
7. It will enter sleep mode if no operation after 60s, awaken it by tapping the screen .
8. With 8-core CUP and Linux system, with stable performance and high response speed.
9. Energy saving, low power consumption, about 300W only.
All kinds of metal (includiung precious metals),stainless steel,steel, aluminum,brass,copper,gold, high hardness alloys, coated materials,PVC,rubber,epoxy resin,etc.
|
Model |
Q8 |
|
Laser Source |
Pulsed Fiber Laser |
|
Laser wavelength |
1064nm |
|
Laser Wattage |
20W/30W/50W |
|
Beam quality |
m2<2 |
|
Laser repetition rate |
20 KHz-60 KHz |
|
Marking speed |
≤ 8000 mm / s |
|
Working area |
75x75 mm |
|
Min.character size |
0.15 mm |
|
Min line width |
0.01 mm |
|
Positioning accuracy |
± 0.005 mm |
|
Power consumption |
≤500 W |
|
Battery duration |
6-8hours hours |
|
Power supply |
AC220V ± 5% , 50/60Hz |
|
Environment requirements |
5-35℃, humidity 30%-80% |
|
Cooling style |
Built-in air cooling |
|
Operation System |
Linux |
|
Supportable formats |
PLT, AI, DXF, BMP, JPG,etc. |
|
Machine dimension |
Cabinet:255×135×200 mm Marking head: 260×120×258 mm |
|
Packing dimension |
580×500×260 mm |
|
Weight |
N.W. : 6kg G.W.：15kg |
