Location:Home > Product center > 3-Axis CO2 Laser Galvo System > KMX-150 3-Axis Dynamic Focus CO2 Laser Galvo System
  • KMX-150 3-Axis Dynamic Focus CO2 Laser Galvo System
  • No.:KMX-150
  • Category:3-Axis CO2 Laser Galvo System
  • Evaluation:( 0 ) record
  • Hits:2621
我要订购
share: Google+ Facebook Virb Twitter LinkedIn Yookos

Introduction: KMX-150 is very suitable for large working area, high efficiency marking & engraving of non-metal materials, such as leather,jean,wood, stone, plastics, or fast cutting of thin materials, such as paper, cloth,fabric, leather and much more.  Utilize perfect smoke exhausting system, solve the smoke and dust during laser working on leather,jeans and etc. Ensure the better laser processing result and protect the users from smoke.

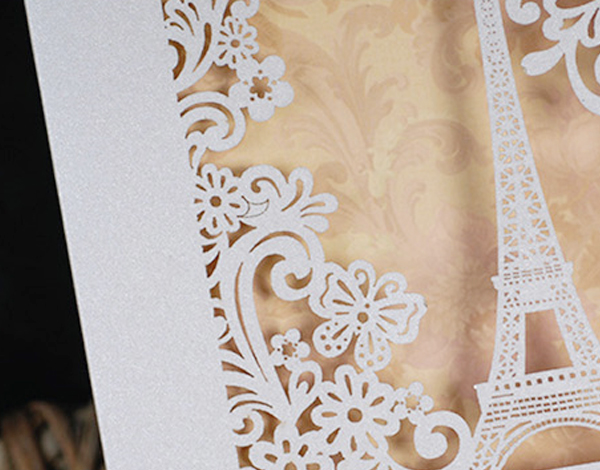

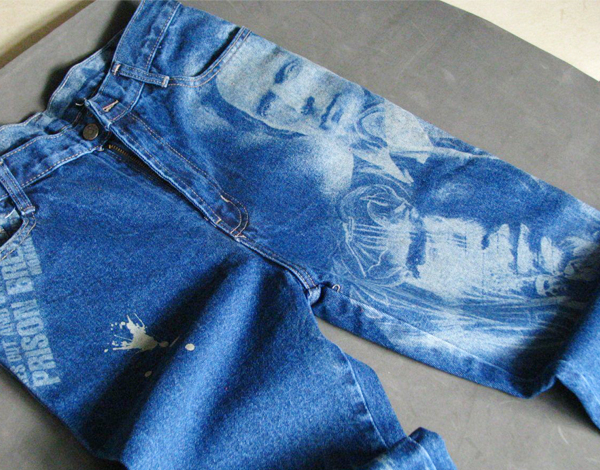

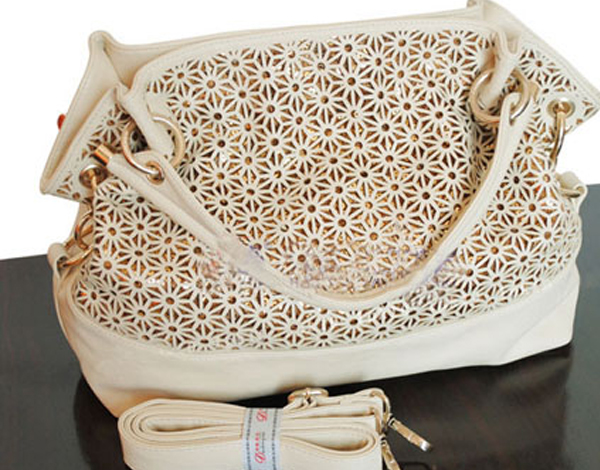

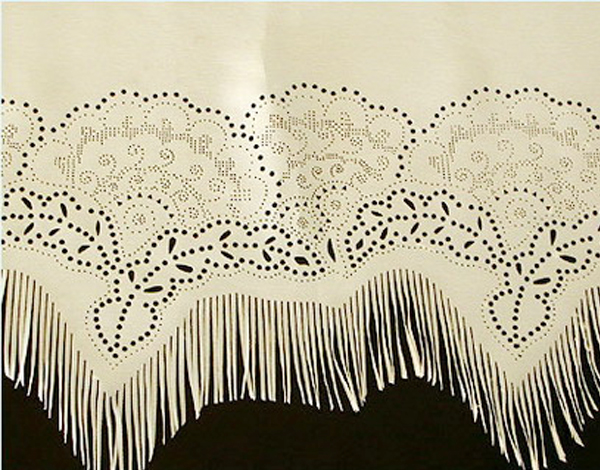

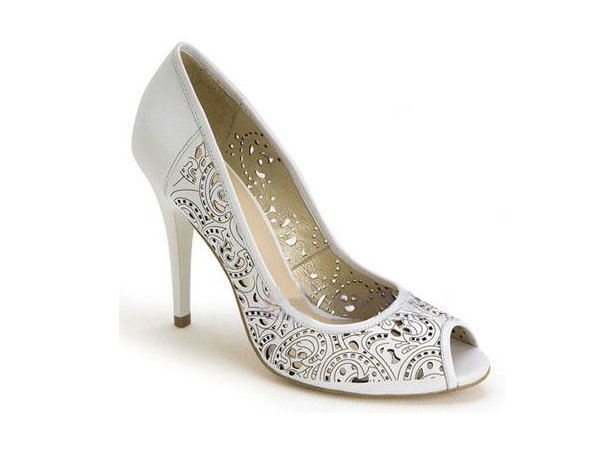

Leather shoes,bag,lable,other products, clothing,jeans, packaging, advertisement, stationery, promotional gifts,greeting card, wood&bamboo crafts,and many other non-metal products making industries.
1- Adopts American imported RF CO2 metal laser tube, life time reach to 20,000 hours.
2- With 3-axis dynamic focusing system, engraving speed is about 20% enhanced.
3- Max.engraving area is 600x600mm, engraving quality is perfect .
4- Friendly interface, very easy operation.
5- High speed galvo scanning system ensures high speed and accurancy.
6- Non-contact working way, wont deform the your products.
7- No need other consumable or assist materials, laser directly mark on your products.
 All kinds of non-metal materials,leather, jean, paper, bamboo,wood, pressboard,stone, plastics, cloth,fabric, rubber,etc.

Model

KMX-150

Laser Source

 Metal sealed-off RF CO2 laser

Laser wavelength

10640 nm

Laser Wattage

150 W

Galvo marking speed

 7000 mm / s

Z axis responding time

4ms

Working area

300X300mm~600x600mm (adjustable )

Min.character size

0.5 mm

Repeating position accurancy

± 0.02 mm

Cooling style

Water cooling

Power consumption

3 kw

Electrical Requirements

AC220V ± 5% , 50/60Hz, 25A, Single phase

Environment requirements

5-35,  humidity 30%-80% , no condensation

O/S

Windows XP, Win 7

Supportable formats

PLT, AI, DXF, BMP, JPG,etc.

Dimension(L x W x H)

Marking system : 1300x1100x 1700 mm

Cooling system : 850x530x 8800 mm

Weight

260 kg


Optional functions or accessories:
Red preview function
Protective cover
Protective goggles,it protects the operators eyes.
